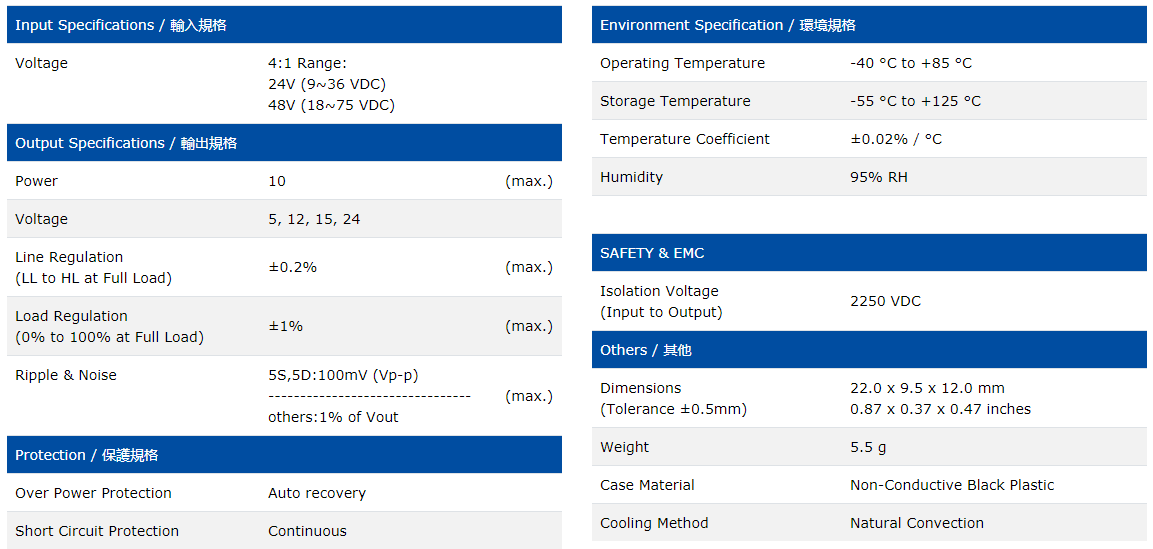

SP10F

●Compact SIP8 Package
●Ultra Compact Size: 0.87 x 0.37 x 0.48 Inches
●High Efficiency up to 89%
●4:1 Wide Input Range
●Without Tantalum Capacitors Inside
●2250VDC Isolation
●Regulated Outputs
●Remote ON/OFF Control
●Operating Temperature: -40°C…+85°C (with derating)
●Fixed Switching Frequency
●Input Under-Voltage Protection
●Low No Load Power Consumption
●Continuous Short Circuit Protection
●3-Years Product Warranty

上一產品：ZC05

下一產品：SW30F (X)

產品描述

●All specifications valid at nominal input voltage,full load and +25°C after warm-up time unless otherwise stated.
●Measured with 0.1U 50V // 47U 50V Ceramic Cap. Cross to output.
●Please refer to the PDF file published on the web site as the final version.
●We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise.
